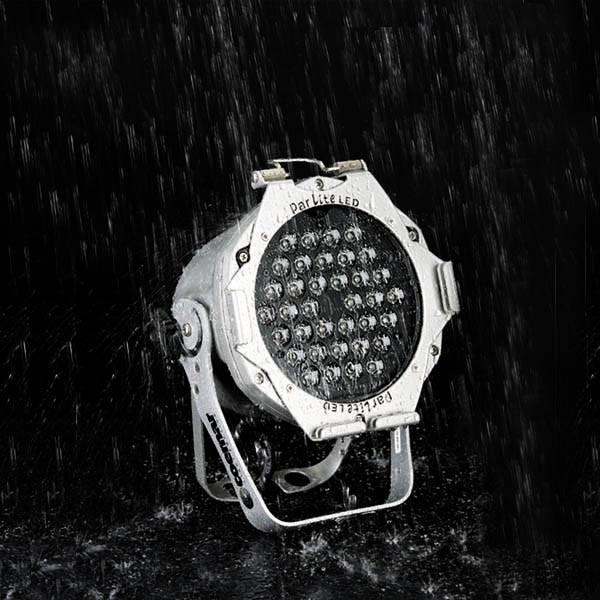

ParLite Led IP65

SPECIFICATIONS:
• RGB color mixing
• Standard lens 12°
• Electronic dimmer (2 different curves selectable)
• Electronic strobe, synchronized, random, pulse
effect
• Flicker free
• IP 65 weatherproof rating
• Double yoke for easy ground standing or truss
hanging
PHYSICAL SIZE:
• Length: 208 mm (8.2 in)
• Width: 162 mm (6.4 in)
• Height: 256 mm (10.0 in)
• Weight: 3.5 kg (7.7 lbs)
LIGHT SOURCE:
• 36 Luxeon leds, 1.2 W each, 12 Red, 12 Green, 12
Blue
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 6
• Setting and addressing: binary dip switch or
remotely
• 4 Internal automatic programs
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz,
2m (6.6 ft) integral cable without power plug
• Power consumption: 0.2 A at 230 V, 0.5 A at 115 V
• DMX data in/out: 3 pin locking XLR
OPTIONS:
• 30° lens kit (# 9167)
• 40°x13° elliptical lens kit (# 9167/2)
• 110° flood reflector (# 9168)
• Frame for internal frost filter (# 9169)
• Frame for external frost filter (# 9169/1)
• 4 leaf barndoor (# 9164)
• 5 pin locking XLR (# 9189)
AVAILABLE VERSIONS:
ParLite Led IP 65 - # 9166
argento/silver
ParLite Led IP 65 - # 9166/1
nero/black

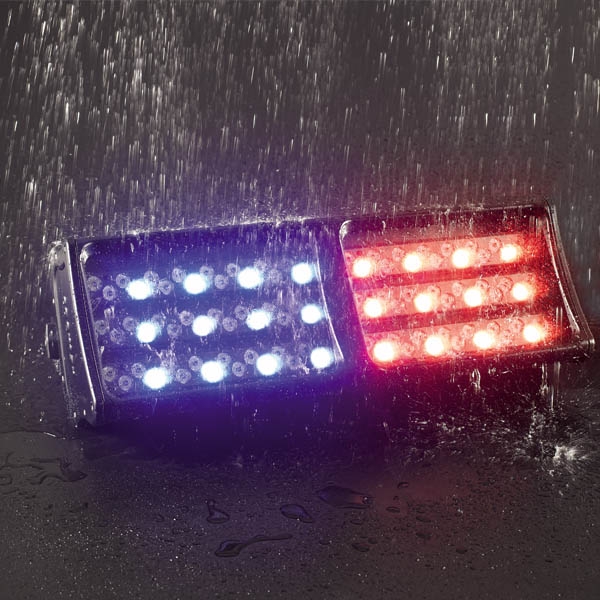

StageLite Led IP65 & StageLite Led FX IP65

SPECIFICATIONS:
• RGB+White color mixing
• 2 cells, individually controllable, of 48 leds each
• Proportional zoom 11° - 34° (vertical beam, ½ peak angle)
• The light beam is generated by three indipendent optical planes (Patent Pending)
• Orientable beam from + 56° to - 52°; linear adjustment with digital positioning control: concentrate, symmetrical or asymmetrical
• Electronic dimmer
• Electronic strobe, synchronized, random, pulse effect
• Swing effects
• Flicker free, led frequency controlled by DMX
• Orientable standing feets
• Quick camlock clamps, on a modular guide with adjustable position
• Pixel control 32 ch (FX only)
• Intensity of each ½ line of leds can be individually controlled (FX only)
• Remote display function with DR 1 +
• IP 65 weatherproof rating
PHYSICAL SIZE:
• Length: 609 mm (24 in)
• Width: 211 mm (8.3 in)
• Height: 181 mm (7.1 in)
• Weight: 12 kg (26.4 lbs)
LIGHT SOURCE:
• 96 Luxeon leds, 1.2 W each, 24 Red, 24 Green, 24 Blue, and 24 White (6500 Kelvin)
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 16
• Setting and addressing: led display or remotely
• Dmx channels: 12/16/20/32 (FX only)
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz, 2m (6.6 ft) integral cable with PowerCon connector without power plug
• Power consumption: 1 A at 230 V, 2 A at 115 V
• DMX data in/out: 3 pin and 5 pin locking XLR

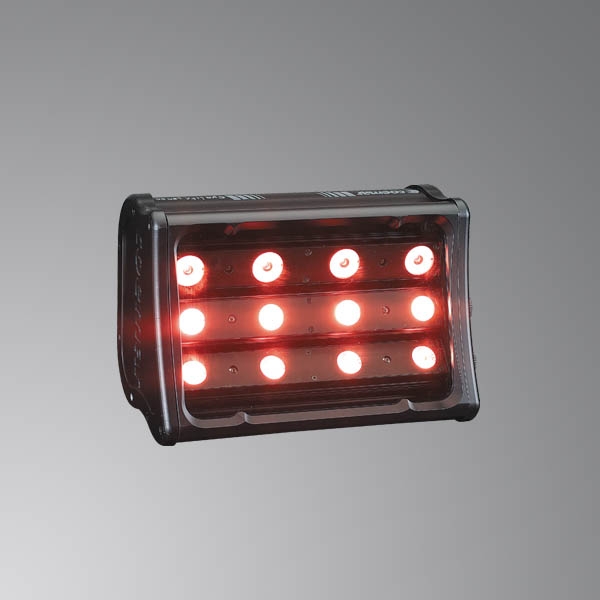

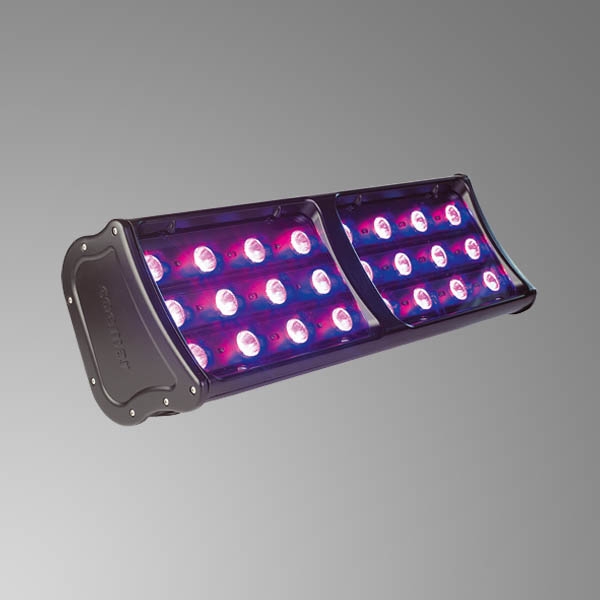

CycLite Led
KEY FEATURES:
• Ideal digital substitute of the analog cyclorama light
• 75% to 82% energy saving compared to traditional technology at the same brightness
• Robust Aluminum, long lasting light source in long lasting body
• No fan, no maintenance, no noise
• ETL approved
• Internal/external gel frame for diffusion filters
• Can be transformed in IP65 at any time
• RGB + White (6500k) led in a single source (Patent Pending)
• Flicker free
• The vertical beam zoom from 26° to 40° can be also focused from +51° to -45° (Patent Pending)

SPECIFICATIONS:
• RGB+White color mixing
• 4 leds in 1 lens (Patent Pending);
• 2 cells, individually controllable of 48 leds each
• Proportional zoom 26° - 40° (vertical beam, ½ peak angle)
• The light beam is generated by three indipendent
optical planes (Exclusive Coemar Patent)
• Orientable beam from + 51° to - 45°; linear adjustment with digital positioning control: concentrate, symmetrical or asymmetrical
• Electronic dimmer
• Electronic strobe, synchronized, random, pulse effect
• Swing effects
• Flicker free, led frequency controlled by DMX (Patent Pending)
• Orientable standing feets
• Quick camlock clamps, on a modular guide with adjustable position

PHYSICAL SIZE:
• Length: 609 mm (24 in)
• Width: 211 mm (8.3 in)
• Height: 181 mm (7.1 in)
• Weight: 12 kg (26.4 lbs)

LIGHT SOURCE:
• 96 Luxeon leds, 1.2 W each, 24 Red, 24 Green, 24 Blue and 24 White (6500 Kelvin)

CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 16
• Setting and addressing: led display or remotely

ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz, 2m (6.6 ft) integral cable with PowerCon connector without power plug
• Power consumption: 1 A at 230 V, 2 A at 115 V
• DMX data in/out: 3 pin and 5 pin locking XLR
